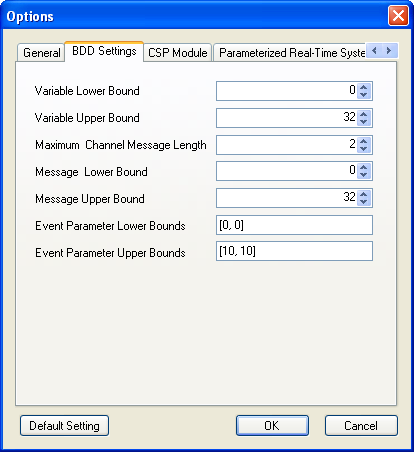

2.3.1 BDD Settings
The BDD Settings is provided for user to set the special variable
ranges. The BDD performance is better if the provided variable ranges are more
tight.
This tab includes 3 kinds of variables
For example:
var a:{0..2} = 0;
var b = 0;
According to
the declaration, variable a's values are between 0 and 2 while b is not provided
the variable range, it will receive the default variable range in the BDD
Setting option tab which is {0..32}
-
The next three settings are used to set for the channel
message. Maximum Channel Message Length is the maximum of the channel message
length where channel message length is the number of parameters in a Channel
Out message, i.e., c!0.1.2 has the channel message length 3. Message Lower
Bound/ Message Upper Bound is the minimum/maximum values for parameters in the
Channel Out message.
-
Event Parameter Lower Bounds/ Event Parameter Upper Bounds are
provided to define the maximum number of parameter in an event name and the
minimum/maximum values of each parameter. According the current setting, the
maximum number of event parameters is 2 and each paramter is in the range
{0..10}. Therefore event names like event1.a, event2.i.j, and event3.0 are
acceptable. Using event name having more than 2 parameters like event4.a.b.c
or out of range paramters like event5.11 causes wrong result.
